Description

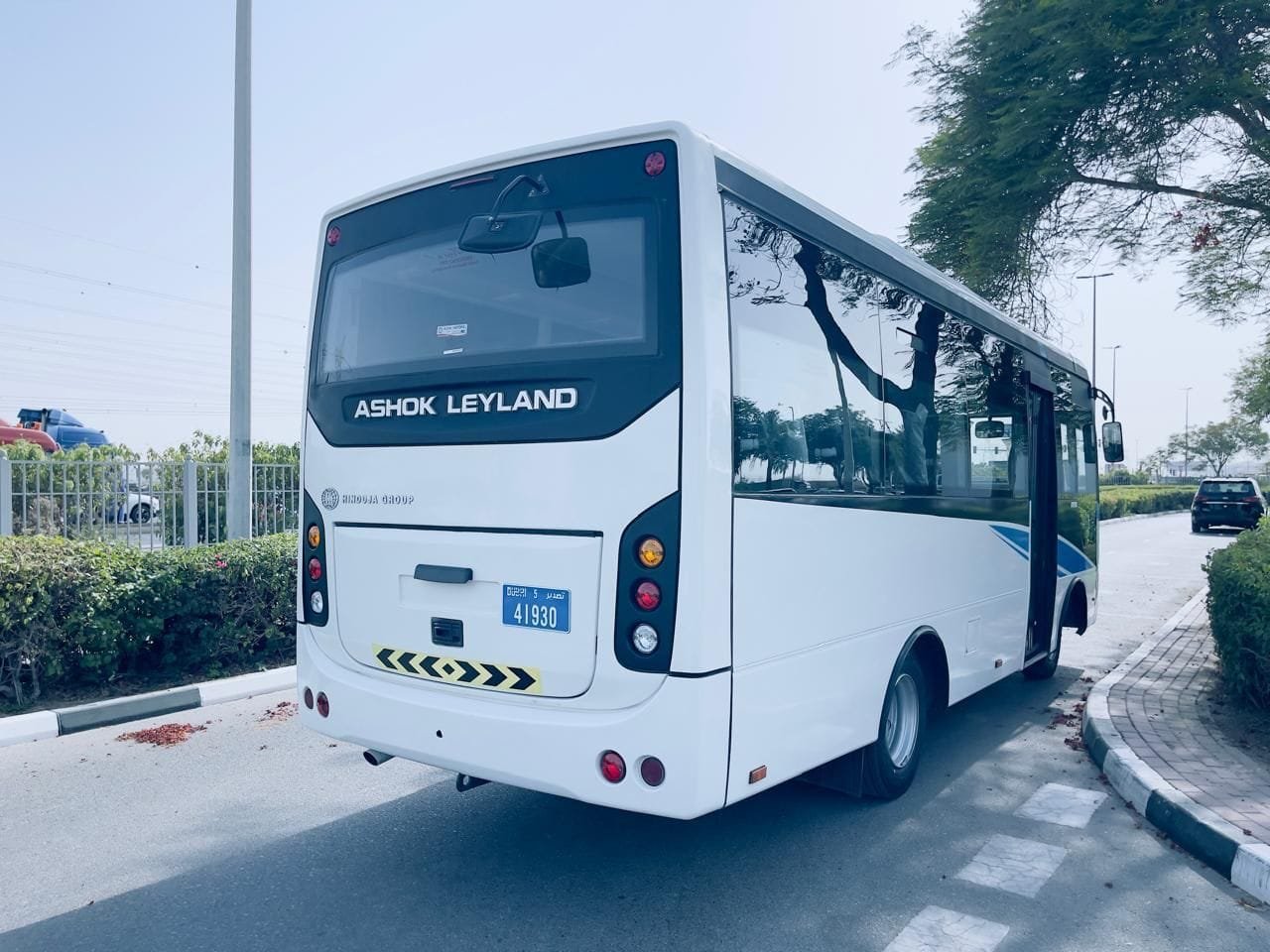

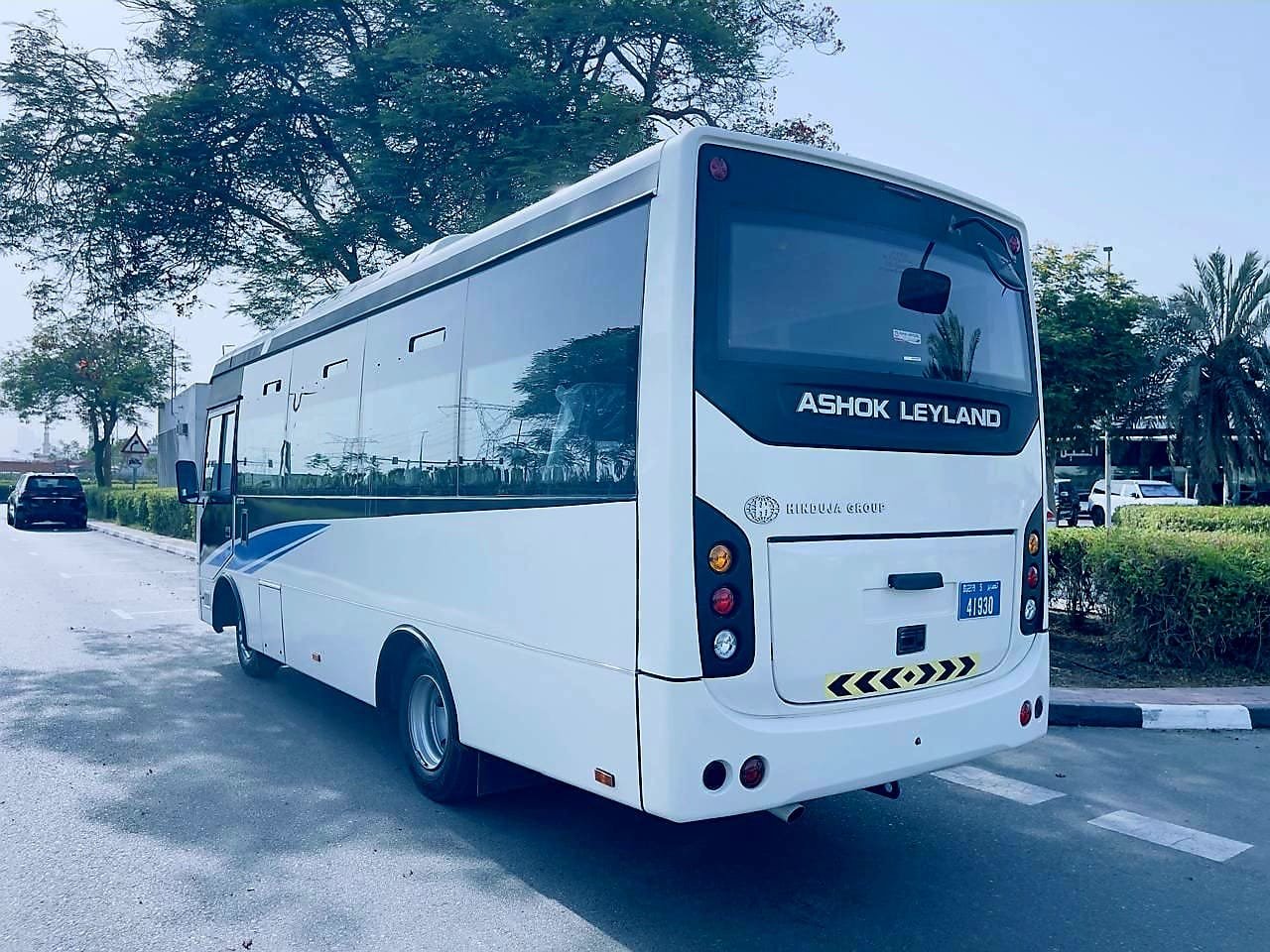

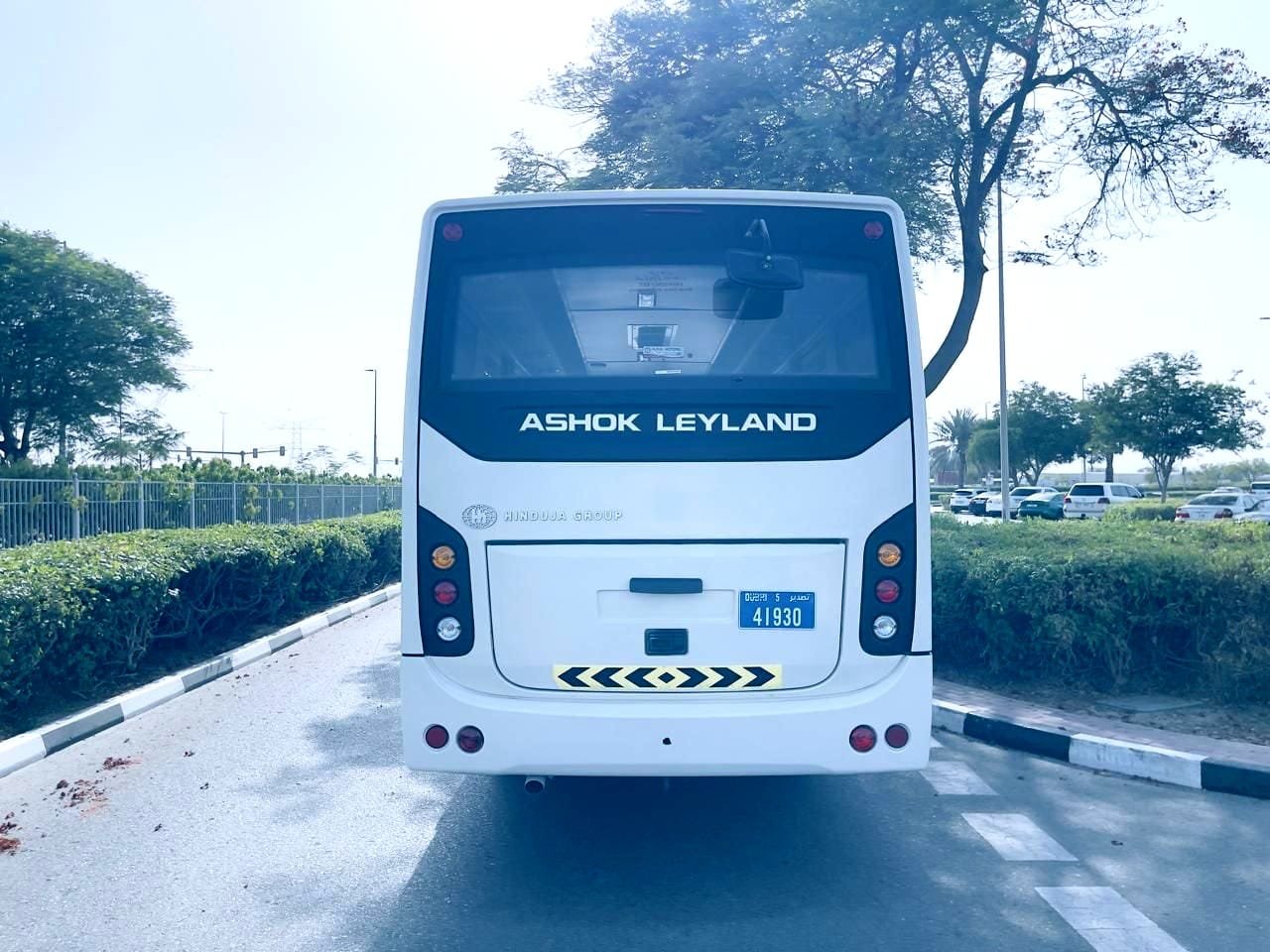

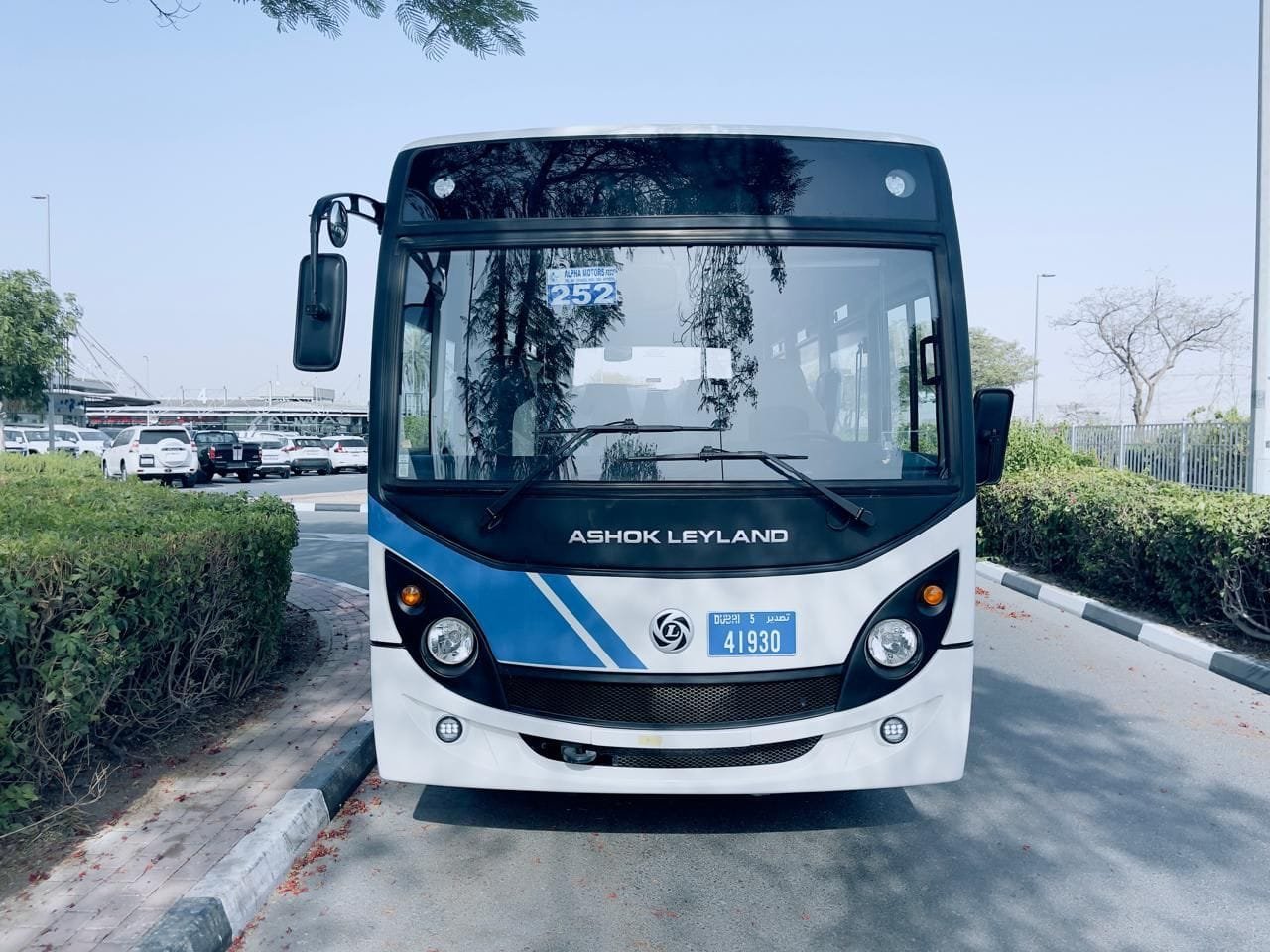

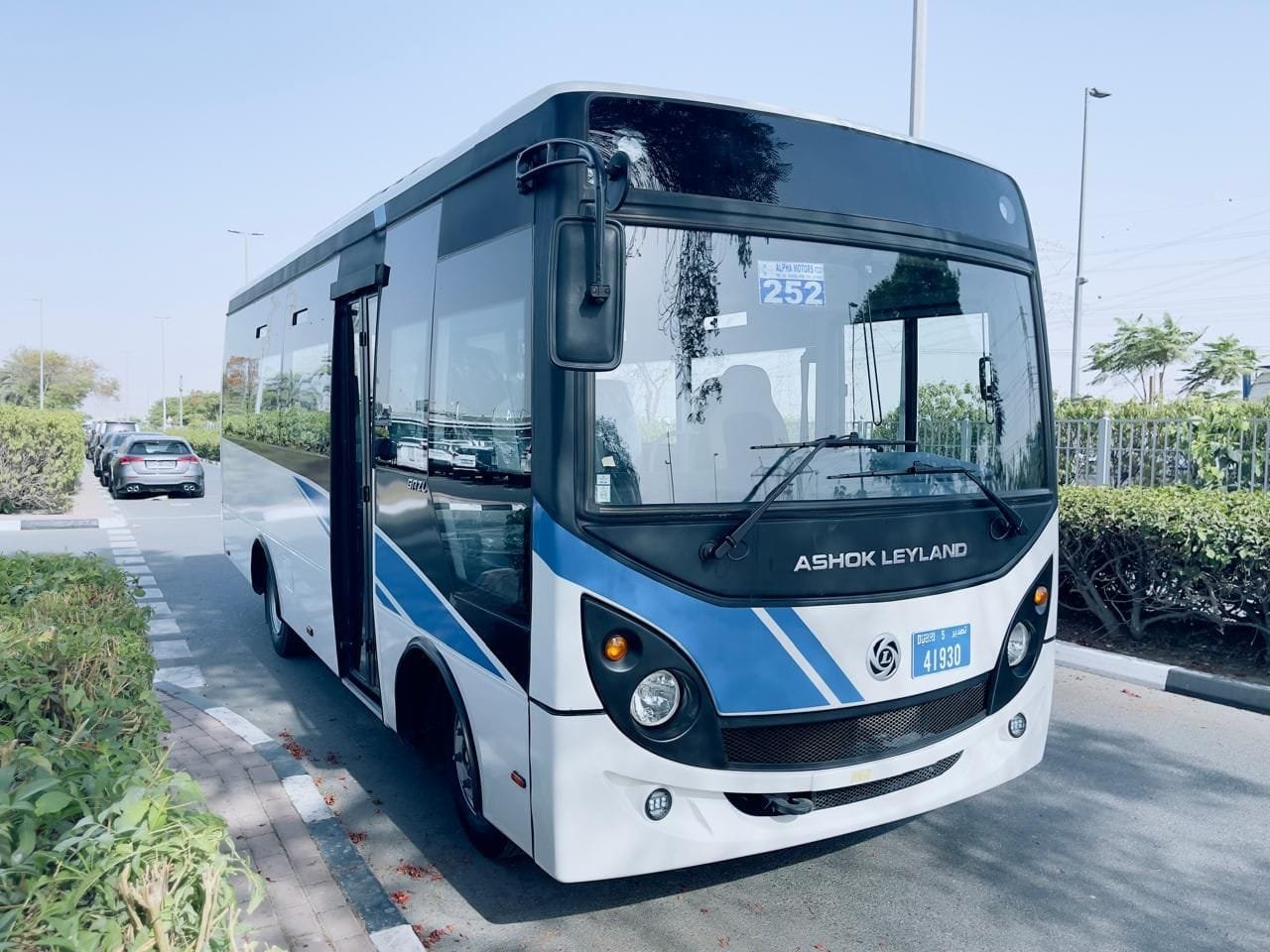

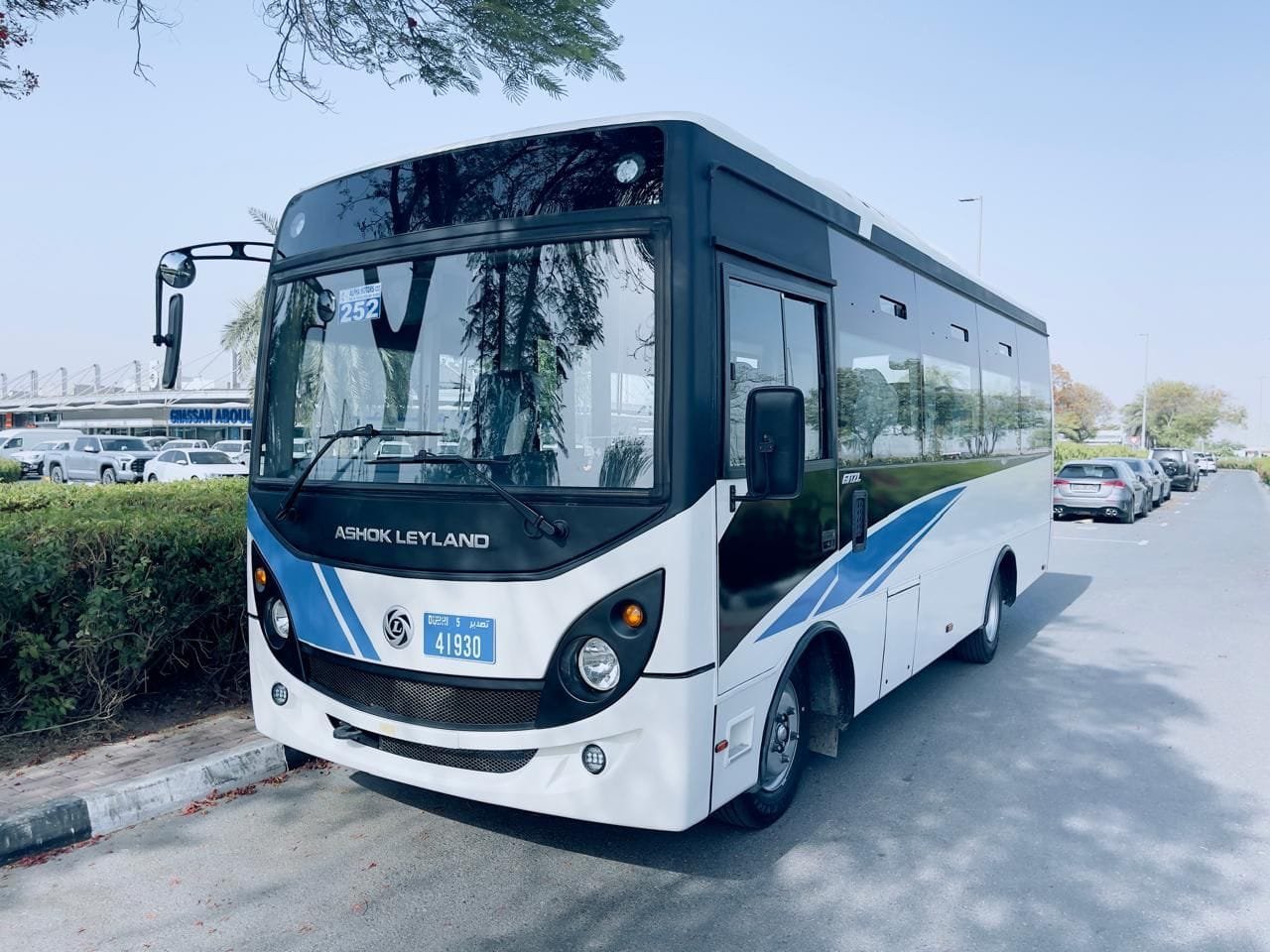

Ashok Leyland 26-Seater Bus – 3.0L Turbo Diesel – GCC Specifications

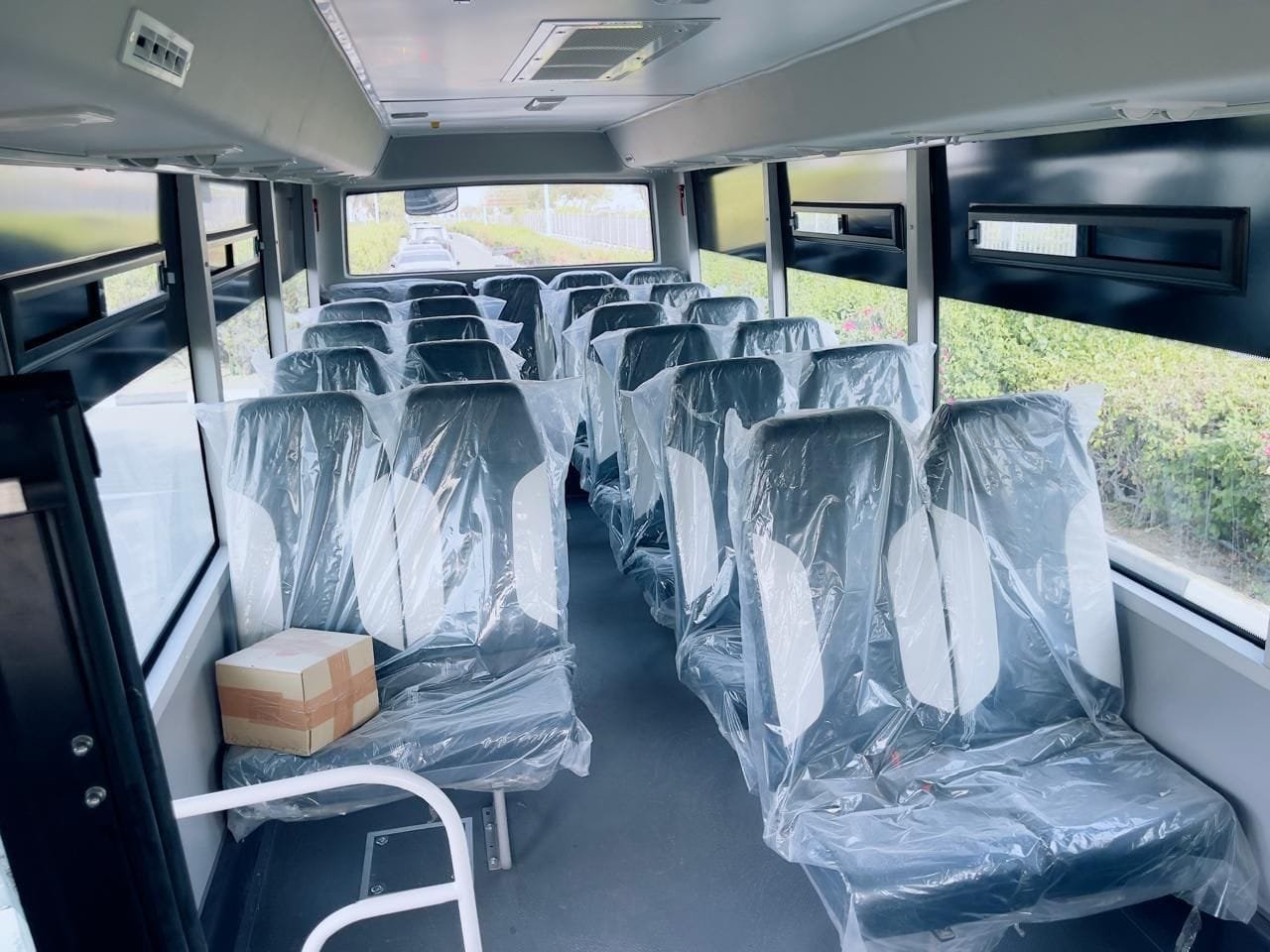

General

• Model: Ashok Leyland Bus – GCC Specifications

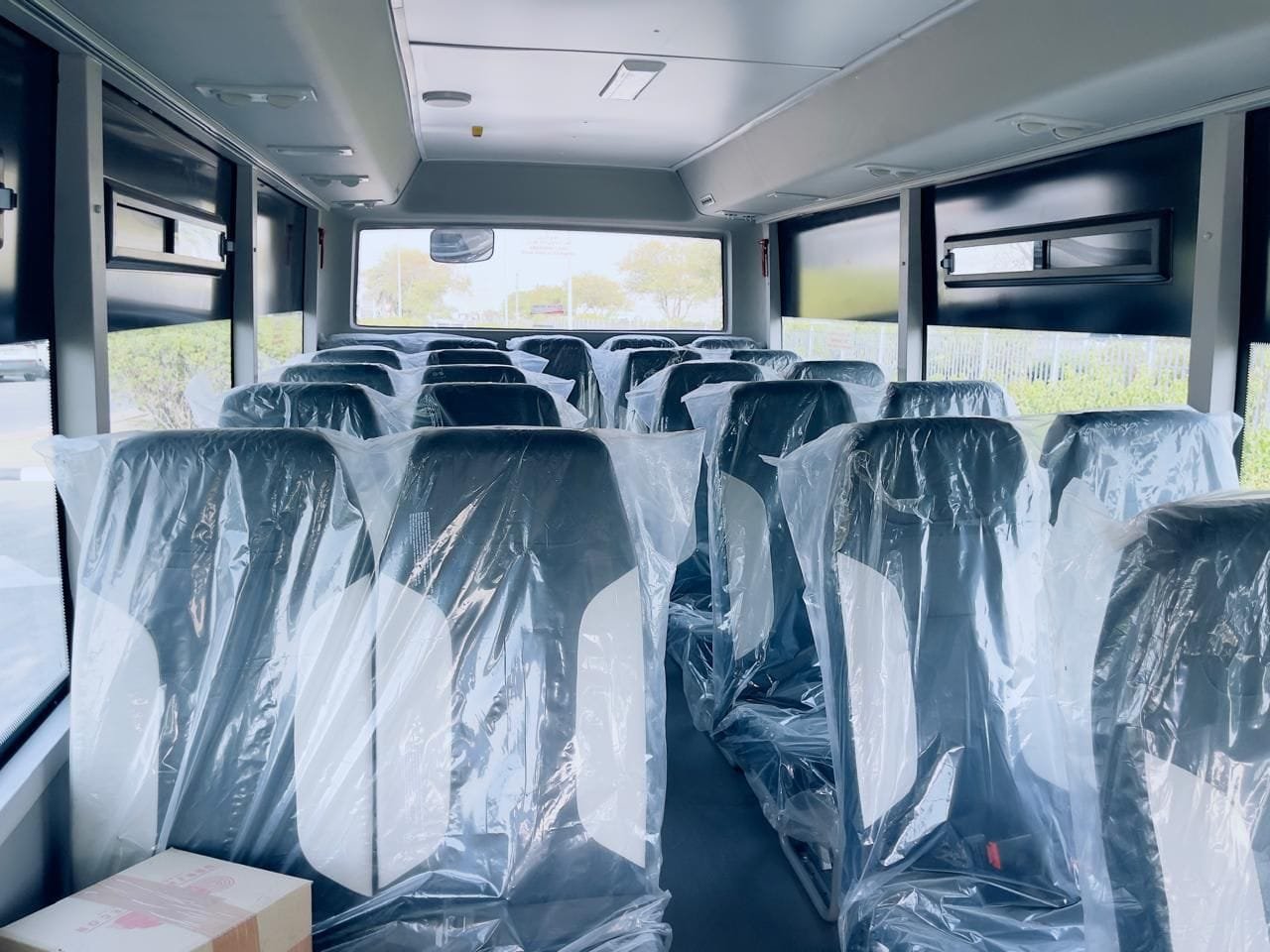

• Seating Capacity: 26 passengers + Driver (26+D)
• Seat Layout: 2×1 configuration

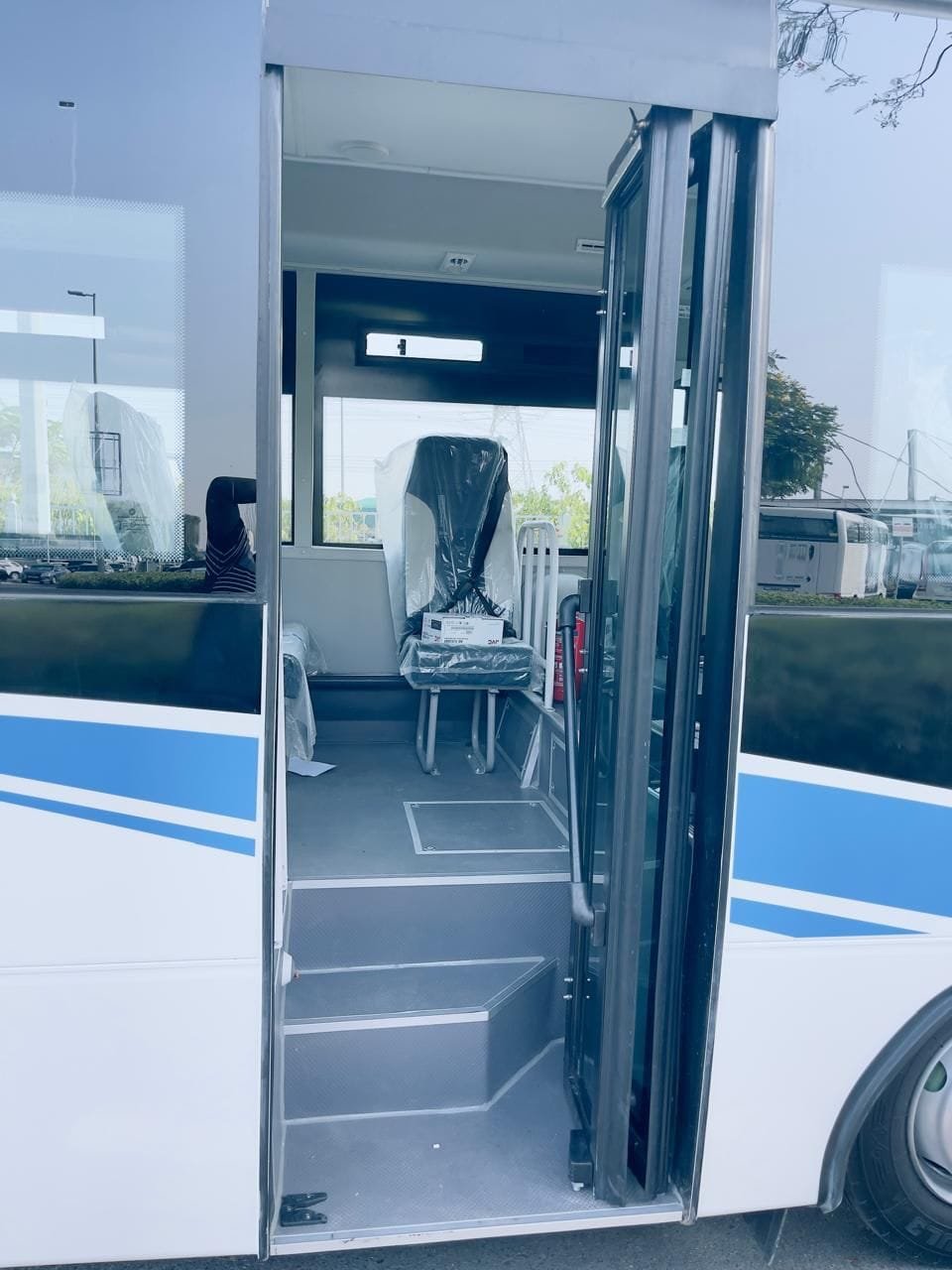

• Full stand-up saloon with spacious aisle
• High-back comfortable seats with ample legroom

Engine & Performance

• Engine: ZD30 DDTi CRD Turbo Diesel
• Engine Capacity: 2,953 cc (3.0L)
• Engine Type:
  • Double Overhead Camshaft (DOHC)
  • Common Rail Direct Injection (CRD)
  • Turbo Intercooled
• Emission Standard: Euro III / Euro IV
• Maximum Torque: 360 Nm @ 1,350–2,750 rpm
• Fuel Tank Capacity: 90 Liters

Transmission

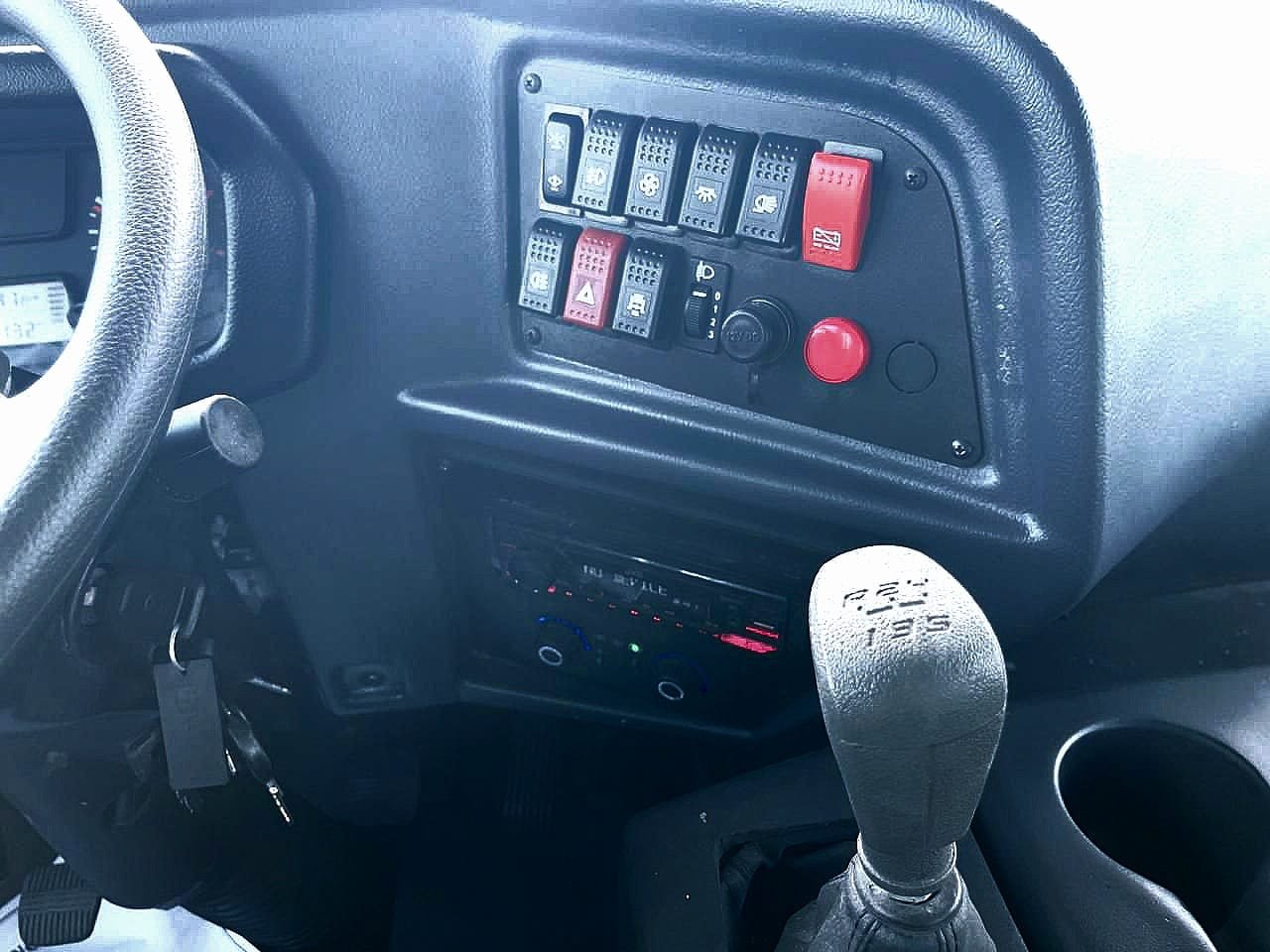

• 5-Speed Manual Transmission
• Cable shift operation
• Hydraulic-actuated single dry plate clutch
• 310 mm clutch diameter for improved durability

Dimensions

• Wheelbase: 3,700 mm
• Overall Dimensions (L × W × H):
  7,150 × 2,150 × 3,000 mm
• Saloon Height: 1,900 mm
• Turning Circle Diameter: 15.38 m

Suspension & Tires

• Front & Rear: Weveller suspension with double-acting shock absorbers
• Tires:
  • Front: 2
  • Rear: 4
  • Spare: 1
• Tire Size: 7.00R16 – 14PR

Braking & Safety

• Dual-circuit hydraulic brakes with vacuum assist
• Anti-lock Braking System (ABS)
• Transmission-mounted parking brake
• Roll-over safety protection
• Fire-retardant interior as per GSO standards
• Solid chassis frame with GI tubular structure
• Driver seat belt: Retractable 3-point
• Passenger seat belts: 2-point
• Two emergency safety hammers

Air Conditioning

• Powerful roof-mounted air conditioning system
• Cooling Capacity: 22 kW
• Individual air louvers for all seats

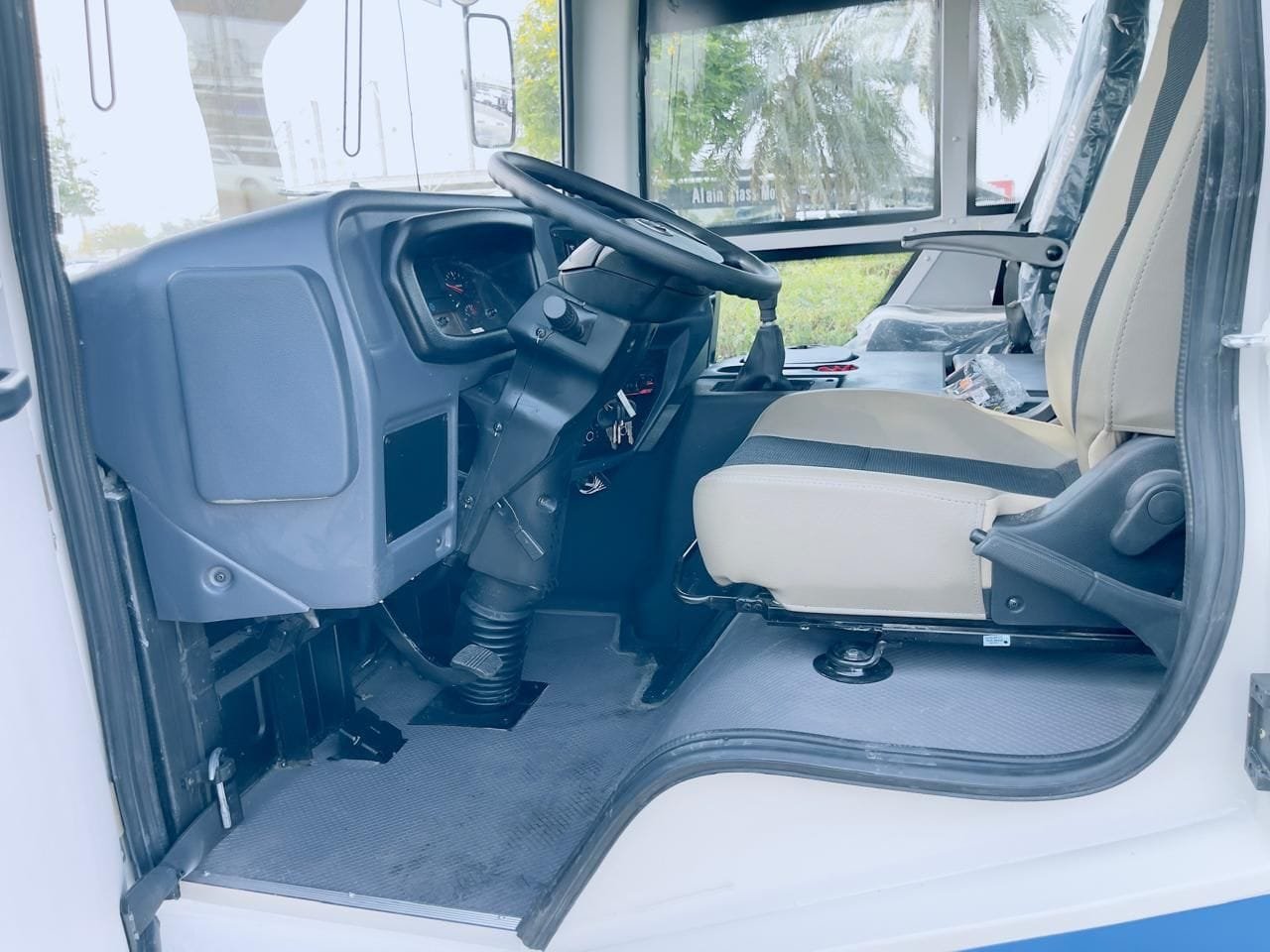

Driver Convenience

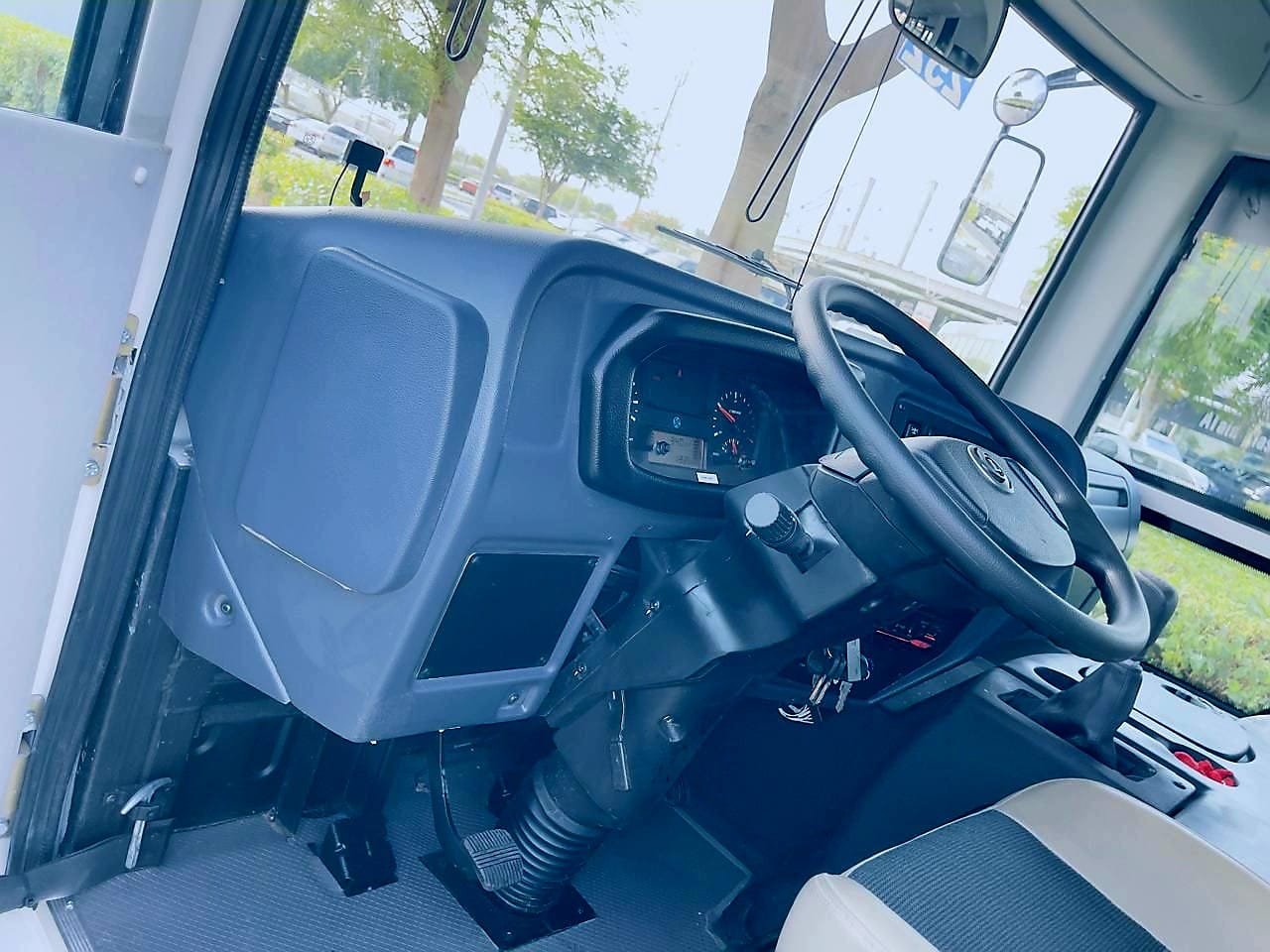

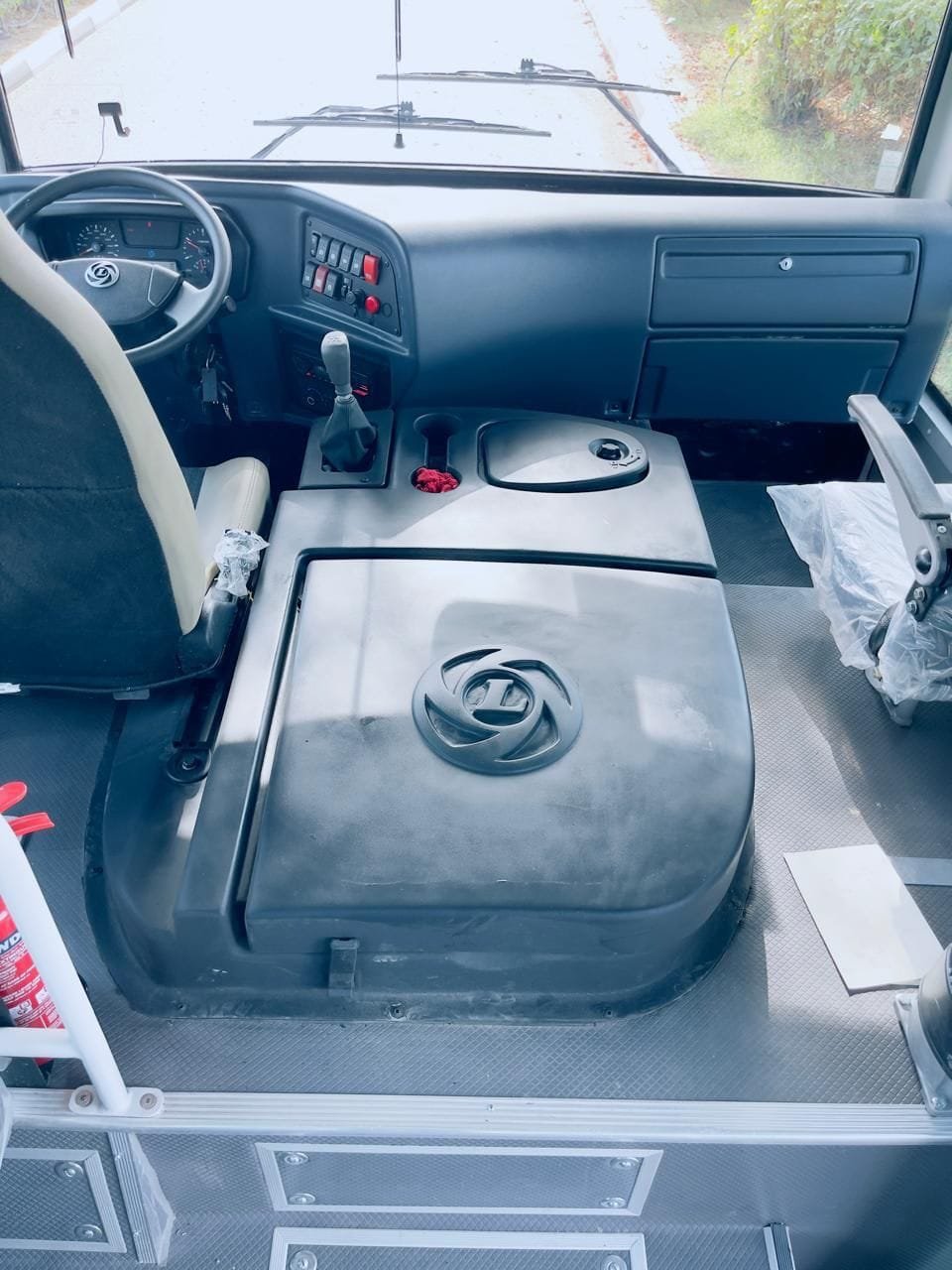

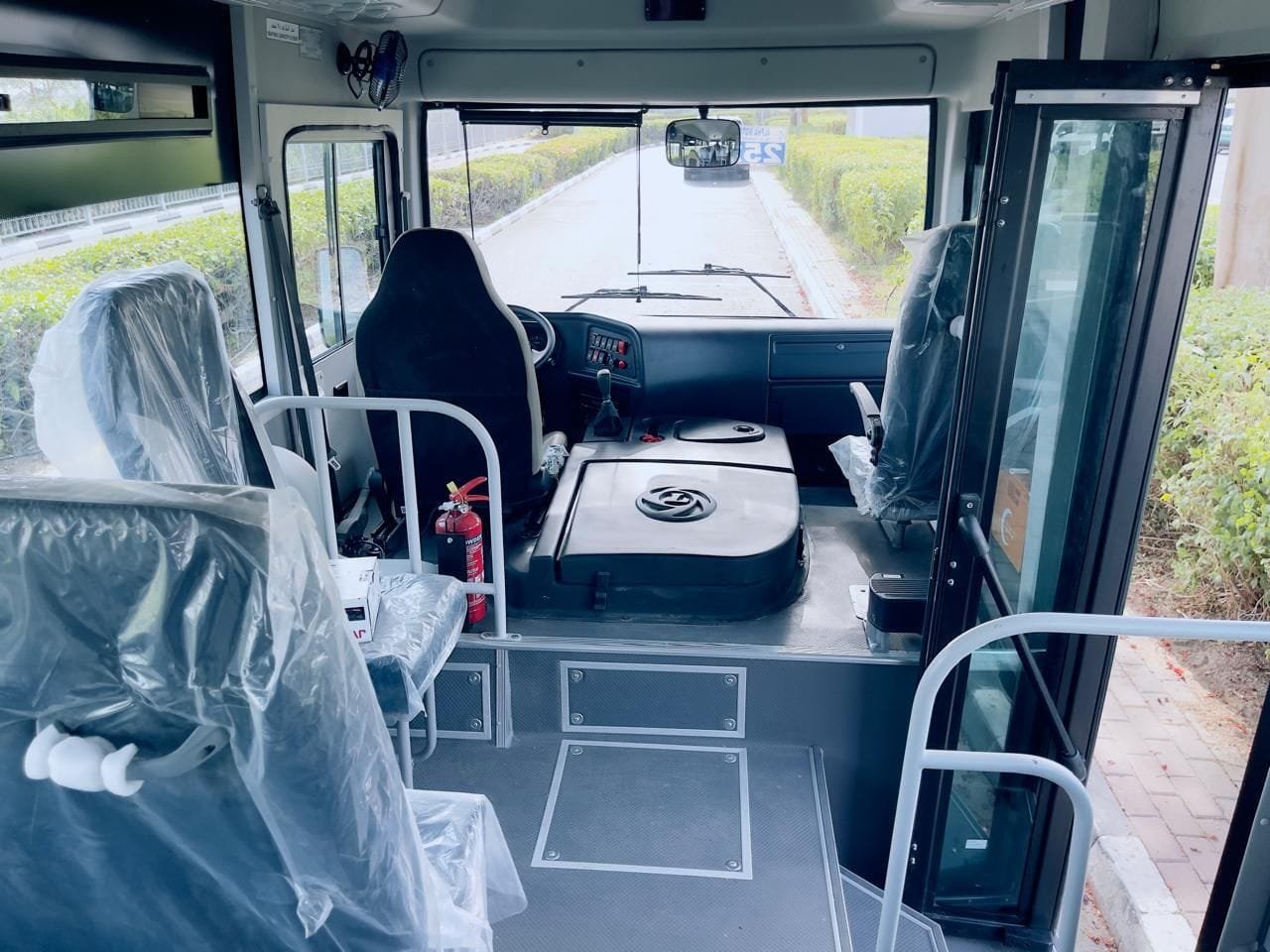

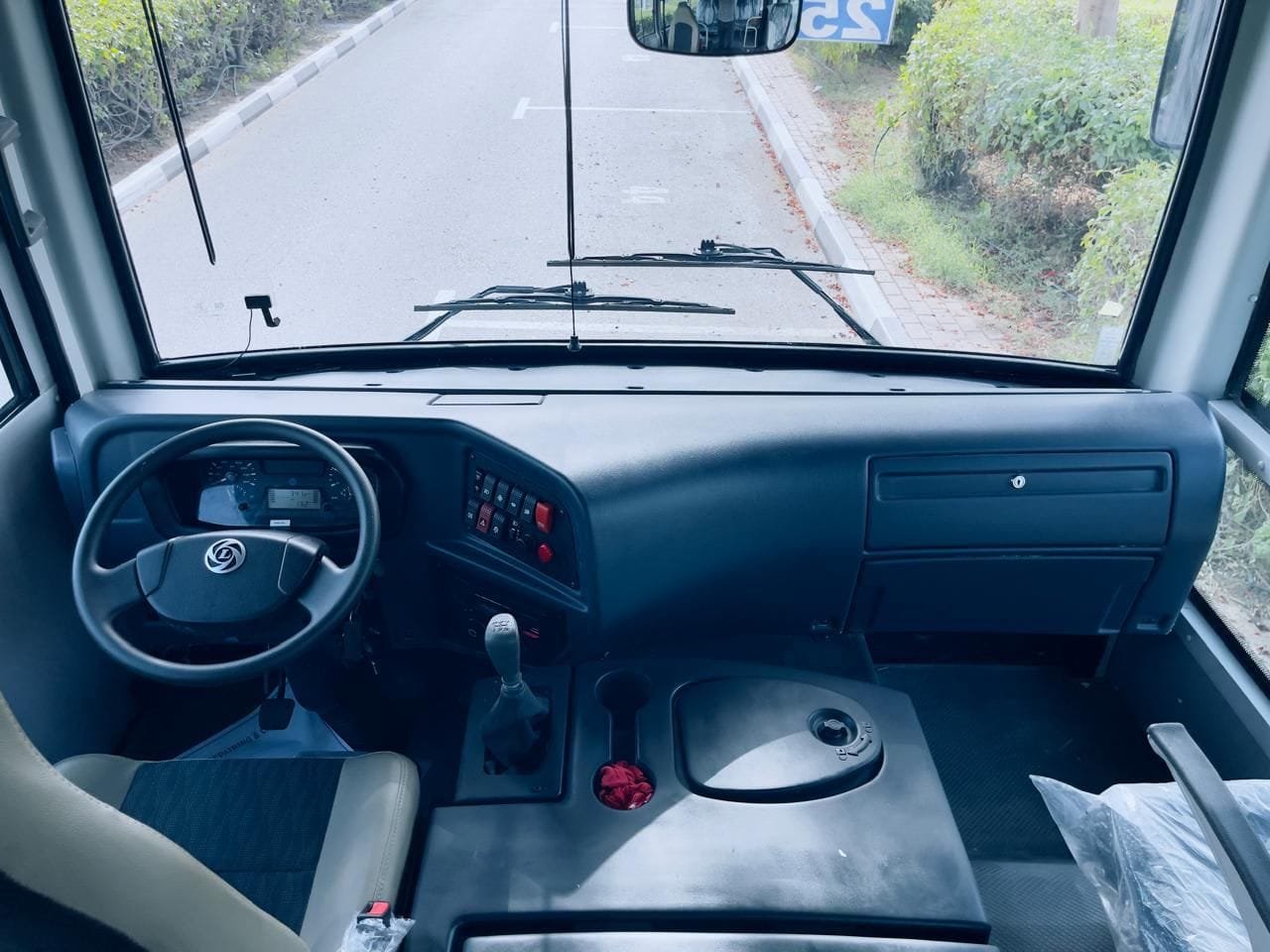

• Ergonomically designed driver workstation
• Additional driver cooling fan
• Rolling sun visor

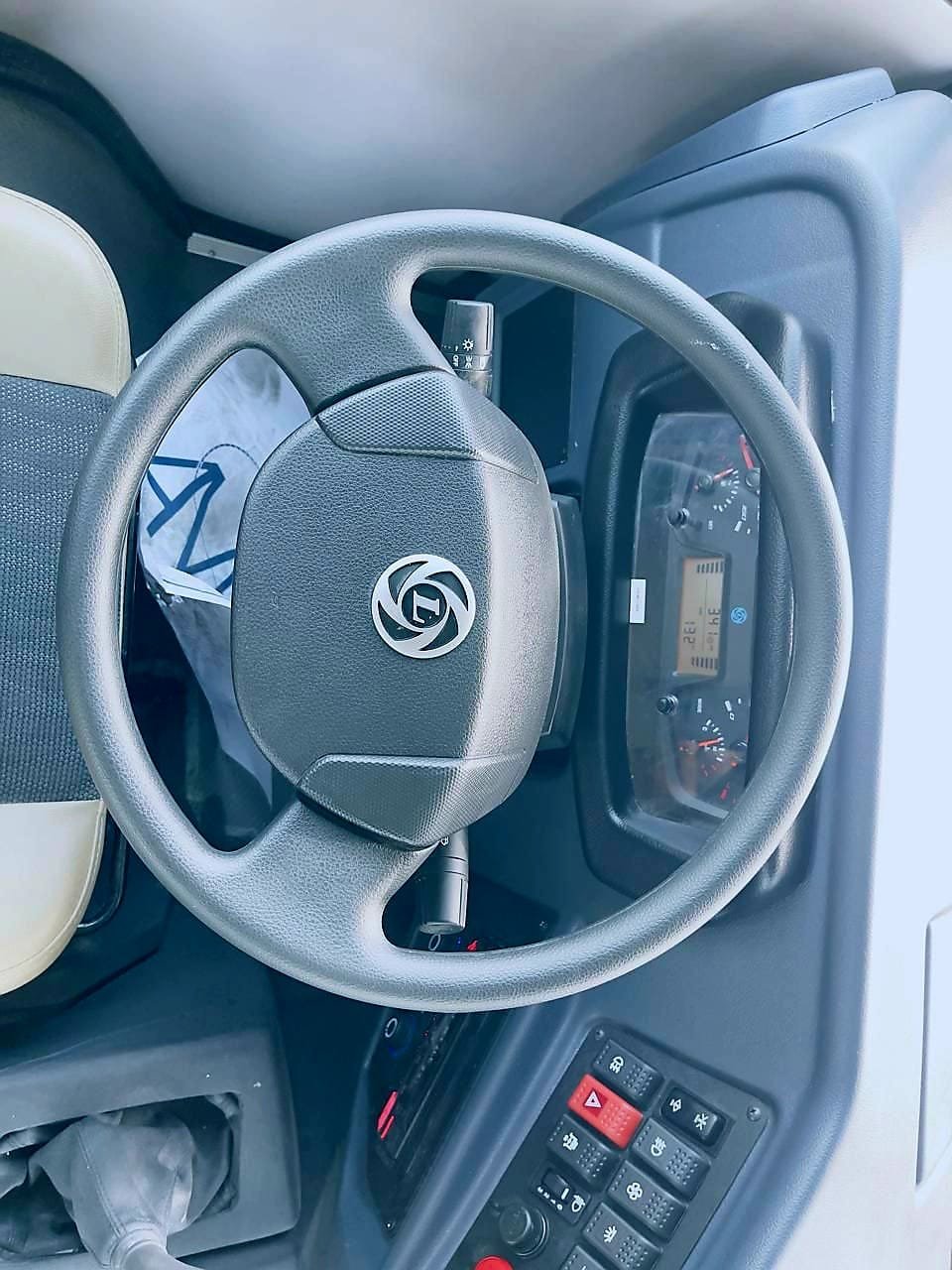

• Digital instrument cluster

Electrical System

• 12V electrical system
• Batteries: 2 × 75 Ah
• Alternator: 140A

Optional Features

• Emergency hatch
• On-board cameras with online tracking
• Engine fire suppression system
• Child-left-behind alarm
• GPS destination board
• Fuel tank guard
• On-board Wi-Fi
• Music system
• USB charging ports for all seats
• Retractable electric footstep
